Understanding the Supernode Analysis in Circuit Theory with an Example

In nodal analysis, we use KCL at each node to determine the node voltages. This is why we need to determine the branch currents, which can be a little difficult to read if a voltage source exists between two nodes. In such cases, we use the supernode method to solve the system parameters. In circuit theory, a supernode is a theoretical construct that can be used to solve a circuit. To do this, we simply replace the voltage source with a short circuit, causing two nodes to act as a single one.

Following example will help to understand the concept. Find the node voltages and branch currents of the following given electric circuit using nodal analysis:

First, we need to determine all the nodes of the circuit and select the reference node, which must be located to ground. Then, we denote all the unknown node voltages and all the branch currents. The modified circuit will look like this, with six nodes in the circuit.

Here we have six nodes in the circuit. The reference node is represented by the green node, and the two pink color nodes represent the known voltage. The remaining three unknown nodes are represented by red color. The nodes A and B contain a voltage source, so we sort it and make these two nodes act as a single node, referred to as a supernode. The supernode construct is only required between two non-reference nodes.

The trick is that the number of equations needed to solve the problem is equal to the number of unknown nodes minus one. In this circuit, we have three unknown node voltages, so we need only two equations to solve this problem. To get the equations, we apply KCL at the supernode and one to any remaining node.

By using supernode analysis, we can simplify the circuit and reduce the number of equations needed to solve it. This technique is particularly useful in complex circuits with multiple voltage sources and non-reference nodes.

Summary:

To apply the supernode method, we first need to identify all the nodes in the circuit and select a reference node. Then we denote all the unknown node voltages and branch currents. If the circuit contains a voltage source between two non-reference nodes, we combine those two nodes into a single supernode.

The key trick in supernode analysis is to recognize that the number of equations needed to solve the problem is equal to the number of unknown node voltages minus one. For example, if a circuit has three unknown node voltages, only two equations are needed to solve for them.

To obtain the equations for supernode analysis, we apply KCL at the supernode and one additional node. This allows us to express the branch currents in terms of the node voltages and solve for the unknown

You can also see - http://totalecer.blogspot.com/2016/10/nodal-analysis-of-electric-circuit.html

Read more ...

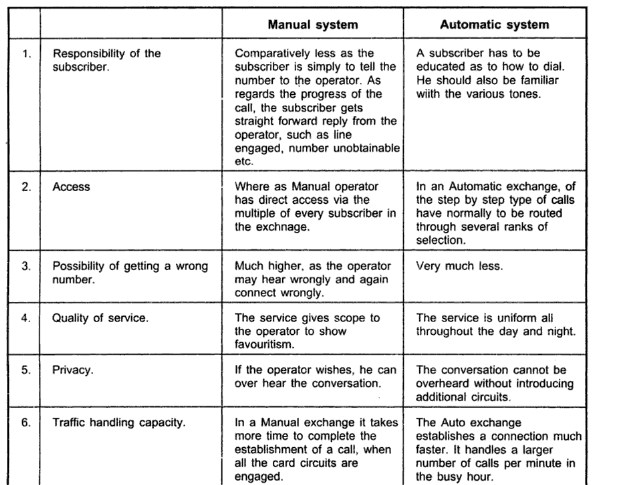

Manual vs Automatic Switching Systems: A Comparison

Manual and automatic switching systems are two different methods of controlling the flow of data or signals through a network or system. Let's compare the two:

Manual Switching System:

In a manual switching system, the operator physically makes the connection between the incoming and outgoing lines to establish communication between two parties.

• This system is commonly used in small-scale applications, where the number of users is limited and the traffic is low.
• It is a slow process, as the operator must manually connect each call.
• There is a possibility of human error, which may result in incorrect connections or dropped calls.
• Manual switching systems are becoming obsolete due to the development of automatic switching systems.

Automatic Switching System:

In an automatic switching system, the connections are made automatically using a switching network.

• This system is used in large-scale applications, where the number of users is high and the traffic is heavy.
• It is a fast process, as the connections are made automatically.
• There is a lower possibility of errors, as the system is designed to make accurate connections.
• Automatic switching systems are more reliable and efficient compared to manual systems.

In summary, automatic switching systems are faster, more reliable, and more efficient compared to manual switching systems, which are slower and prone to human error. However, manual switching systems may still be useful in small-scale applications or situations where human intervention is preferred.

Read more ...

Writing a Prime Number Program in Assembly Language

Prime numbers are a fascinating topic in mathematics and computer science. A prime number is a positive integer greater than 1 that has no positive integer divisors other than 1 and itself. In other words, a prime number can only be divided by 1 and itself. In this post, we will discuss how to write a prime number program in assembly language.

Assembly language is a low-level programming language that is used to write programs that can directly interact with the hardware of a computer system. It is a symbolic representation of machine code, which is executed by the processor. Assembly language is known for its speed and efficiency and is widely used for developing operating systems, device drivers, and other low-level software applications.

To write a prime number program in assembly language of a 8086 microprocessor, we will use MASM software. The program will take an input number from the user and then check if it is a prime number or not. Here is the assembly language program:

.MODEL SMALL
.STACK 100H

.DATA

  NUM DB ?
  MSG1 DB 10,13,'ENTER NO: $'
  MSG2 DB 10,13,'NOT PRIME: $'
  MSG3 DB 10,13,'PRIME: $'

.CODE
MAIN PROC

  MOV AX,@DATA
  MOV DS,AX

  LEA DX,MSG1
  MOV AH,9
  INT 21H

  MOV AH,1
  INT 21H
  SUB AL,30H
  MOV NUM,AL

  CMP AL,1
  JLE LBL2
  MOV AH,00
  CMP AL,3
  JLE LBL3
  MOV AH,00

  MOV CL,2
  DIV CL
  MOV CL,AL

LBL1:

  MOV AH,00
  MOV AL,NUM
  DIV CL
  CMP AH,00
  JZ LBL2
  DEC CL
  CMP CL,1
  JNE LBL1
  JMP LBL3

LBL2:

  MOV AH,9
  LEA DX,MSG2
  INT 21H
  JMP EXIT

LBL3:

  MOV AH,9
  LEA DX,MSG3
  INT 21H

EXIT:

  MOV AH,4CH
  INT 21H


MAIN ENDP
END MAIN

Let's start by understanding the logic of the program.

The logic of the program is very simple. We will take an input number from the user and check whether it is a prime number or not. To check whether a number is prime or not, we will divide the number by all the integers from 2 to n/2. If the number is divisible by any of these integers, it is not a prime number. Otherwise, it is a prime number.

Now, let's move on to the program.

The first thing we need to do is to define the model and stack. We will use the small model and allocate 100 bytes for the stack.

.MODEL SMALL

.STACK 100H

Next, we will define the data section of the program. We will use a single byte variable to store the input number and three string variables to display messages.

  .DATA

  NUM DB ?

  MSG1 DB 10,13,'ENTER NO: $'

  MSG2 DB 10,13,'NOT PRIME: $'

  MSG3 DB 10,13,'PRIME $'

In the code section, we will start by initializing the data segment and pointing the data segment register to the beginning of the data section.

.CODE

MAIN PROC

  MOV AX,@DATA

  MOV DS,AX

Next, we will display a message asking the user to enter a number. We will use the interrupt 21h function 9 to display the message.

  LEA DX,MSG1

  MOV AH,9

  INT 21H

After displaying the message, we will take the input number from the user using interrupt 21h function 1. We will subtract 30H from the input to convert it from ASCII to decimal. Then, we will store the input in the NUM variable.

  MOV AH,1

  INT 21H

  SUB AL,30H

  MOV NUM,AL

Now, we will check whether the input number is less than or equal to 1. If it is, we will jump to the LBL2 label and display a message that the number is not prime.

  CMP AL,1

  JLE LBL2

If the input number is greater than 1, we will check whether it is less than or equal to 3. If it is, we will jump to the LBL3 label and display a message that the number is prime.

  MOV AH,00

  CMP AL,3

  JLE LBL3

If the input number is greater than 3, we will divide it by all the integers from 2 to n/2. We will use a loop to do this. We will start by initializing CL to 2 and dividing the input number by CL. If the remainder is zero, we will jump to the LBL2 label and display a message that the number is not prime. Otherwise, we will decrement CL by 1 and check whether CL is equal to 1. If it is not, we will repeat the division process. If CL is equal to 1, we will jump to the LBL3 label and display a message that the number

Read more ...

Stray or Parasitic Capacitance in High Frequency Electronics Circuit

Capacitance means 'the ability to store the charge' and stray means 'not in the right place'. Therefore we can say that if capacitance is established anywhere (may be in a device or between devices) without  ordinary capacitor, then it is called as stray or parasitic capacitance.

Capacitance doesn't exist only within capacitors. Actually any two surfaces/bodies/regions  at different electric potential are separated by few distance or dielectric  somehow  provides some capacitance.

Stray capacitance always exists among leads of the devices, between two conductor wires, between p and n regions of diodes etc. This is unwanted but unavoidable capacitance and referred as different names in different cases such as Parasitic Capacitance.

Designers of circuits try to minimize stray capacitance as much as possible among several devices. They do this by keeping the leads of electronic components very short and grouping components in such a way to eliminate capacitive coupling.

At low frequencies, parasitic or stray capacitance can usually be ignored. However, in high-frequency circuits/components, it can be a major problem. The capacitive reactance (Xc) is inversely proportional to the product of the frequency and capacitance, [Xc = 1 / (2*pi*f*c)]. As the frequency increases, the capacitive reactance decreases, resulting in more current flowing through the capacitor. That is why electronic components are modified for high frequencies (microwaves).

In conclusion, understanding the concept of capacitance and stray capacitance is crucial in the design and development of electronic devices and circuits. It is essential to minimize stray capacitance and to consider the effects of capacitance at high frequencies to ensure optimal performance and functionality.

Read more ...

Earth is the Same, but Matter Exhibits Different Properties and Behaviors in Nature - Why?

According to modern electron theory, all matter is composed of three fundamental particles that are invisible to the naked eye: neutrons, protons, and electrons. An electron in copper is no different from an electron in water or any other element. Similarly, neutrons and protons from various atoms are identical in nature. So why do various elements behave differently?

The reason for this is the difference in the arrangement of electrons, protons, and neutrons that make up each atom. Atoms or molecules form matter, and the different arrangements of these particles cause variations in their inter atomic attraction or kinetic energies. Variations in the attractions and kinetic energies among molecules result in different states of matter, such as solids, liquids, and gases

Read more ...

Performing Pulse Code Modulation and Demodulation using MATLAB Code

This is a MATLAB code for performing Pulse Code Modulation (PCM) on an analog signal. The code generates an analog signal, samples it, quantizes it, encodes it, and finally demodulates it back to obtain the original analog signal. Here is the complete code:

function pcm()

clc;

close all;

clear all;

n=input('Enter n value for n-bit PCM system :  ');

n1=input('Enter number of samples in a period : ');

L=2^n;

% % Signal Generation

x=0:2*pi/n1:4*pi;

% n1 number of samples have to be selected

s=4*sin(x);

subplot(4,1,1);

plot(s);

title('Analog Signal');

ylabel('Amplitude--->');

xlabel('Time--->');

subplot(4,1,2);

stem(s);grid on;

title('Sampled Signal');

ylabel('Amplitude--->');

xlabel('Time--->');

 %  Quantization Process

 vmax=10;

 vmin=-vmax;

 del=(vmax-vmin)/L;

 part=vmin:del:vmax;

 % level are between vmin and vmax with difference of del

 code=vmin-(del/2):del:vmax+(del/2);

% Contaion Quantized values

 [ind,q]=quantiz(s,part,code);



% Quantization process

% ind contain index number and q contain quantized  values

 l1=length(ind);

 l2=length(q);



 for i=1:l1

    if(ind(i)==0)

           % To make index as binary decimal so started from 0 to N

       ind(i)=ind(i)-1;

    end



 end

  for i=1:l2

     if(q(i)==vmin-(del/2))



             % To make quantize value in between the levels

         q(i)=vmin+(del/2);

     end

 end

 subplot(4,1,3);

 stem(q);

grid on;                       % Display the Quantize values

 title('Quantized Signal');

 ylabel('Amplitude--->');

 xlabel('Time--->');

 %  Encoding Process

 figure

 code=de2bi(ind,'left-msb');        % Convert the decimal to binary

 k=1;

for i=1:l1

    for j=1:n

        coded(k)=code(i,j);



        % convert code matrix to a coded row vector

        k=k+1;

    end

end

 subplot(2,1,1);

 grid on;

 stairs(coded);                 % Display the encoded signal

axis([0 100 -2 3]);

 title('Encoded Signal');

 ylabel('Amplitude--->');

 xlabel('Time--->');

 %   Demodulation Of PCM signal

 qunt=reshape(coded,n,length(coded)/n);

 index=bi2de(qunt','left-msb');         % Get back the index in decimal form

 q=del*index+vmin+(del/2);            % Get back Quantized values

 subplot(4,1,4);

 plot(q);                                            % Plot Demodulated signal

 title('Demodulated Signal');

 ylabel('Amplitude--->');

 xlabel('Time--->');

end

Read more ...

What do you mean by Constellation Diagrams in Communication Systems?

A constellation diagram is a graphical representation of a signal modulated by a digital modulation scheme such as quadrature amplitude modulation or phase-shift keying(QAM/QPSK). It shows the signal constellation, which is a set of complex numbers that represent the possible signal values in a modulation scheme.

In a constellation diagram, each point represents a symbol, and the location of the point in the complex plane represents the phase and amplitude of the corresponding signal. The horizontal axis represents the in-phase (I) component of the signal, and the vertical axis represents the quadrature (Q) component of the signal.

The constellation diagram is a useful tool for analyzing the performance of a communication system. Measured constellation diagrams can be used to recognize the type of interference and distortion in a signal. It can be used to visualize the effects of noise and other impairments on the transmitted signal. By analyzing the distribution of points in the constellation diagram, engineers can evaluate the quality of the signal and make adjustments to improve the performance of the system.

Read more ...

Sampling Theorem Statement

Sampling theorem state that the bandpass signal x(t) whose maximum bandwidth is 2w can be completely represented into and recovered from its samples, if it is sampled at the minimum rate of twice the bandwidth.

Read more ...

Comparison of PCM, DM, and ADM: Which one is the best for digital communication?

When the analog signal is sampled, it can be quantized and encoded by any one of the following techniques-

        i) Pulse code modulation (PCM)

        ii) Delta Modulation (DM)

       iii) Differential pulse code modulation (DPCM)

These techniques convert an analog pulse to its digital equivalent. The digital information is then transmitted over the channel. The major difference among the techniques are given below:

PCM is a digital pulse modulation technique where an analog signal is sampled and quantized to a discrete signal. The analog signal is first sampled at regular intervals and then quantized to the nearest level. PCM has the advantage of having a simple implementation and being able to achieve high signal-to-noise ratios. However, it requires high bandwidth and is sensitive to quantization errors.

Delta modulation (DM) is a digital pulse modulation technique that approximates the waveform of the analog signal by a series of pulses. DM samples the analog signal and then compares the present sample with the previous sample to determine the next pulse. DM has a simple structure and requires low bandwidth. However, it has poor performance in low signal-to-noise ratio conditions and produces high quantization noise.

Adaptive Delta Modulation (ADM) is an improved version of DM that adjusts the step size of the quantization to track the changes in the input signal. ADM overcomes the limitations of DM and produces better performance in low signal-to-noise ratio conditions. However, ADM requires more complex implementation and is more sensitive to changes in the input signal.

In summary, PCM is suitable for high signal-to-noise ratio conditions, DM is appropriate for low bandwidth and low-complexity applications, and ADM is ideal for low signal-to-noise ratio conditions. The choice of which technique to use depends on the specific requirements of the application.

Read more ...

Nodal Analysis of an Electric Circuit: Finding Node Voltages and Branch Currents

Find the node voltages and branch currents of the following electric circuit using nodal analysis:

According to the method of Nodal analysis, first of all we need to determine all the nodes of the circuit.  Then select the reference node which must be located to ground. After all denote all the unknown node voltages and all the branch currents.  Now the modified circuit looks like below:

Here we have four nodes in the circuit. The reference node is represented by yellow node. The pink color node voltage is known. So remaining two unknown nodes are represented by green color.

The tricks is that the number of equations need to solve the problem equal to the number of unknown nodes.

According to KCL, we get-



Read more ...

Understanding the Skin Effect in Transmission Lines

The skin effect is a phenomenon in which the AC current flowing through a conductor is concentrated near the surface of the conductor, and the deeper the current flows, the smaller the current density becomes. This is due to the magnetic field that is generated around the conductor as a result of the current flow. The magnetic field induces an opposing current in the conductor, which produces an opposing magnetic field that opposes the original magnetic field. This results in a greater resistance to the flow of current at the center of the conductor than at the surface.

The skin depth of a transmission line is defined as the the measurement of it's depth(surface area to center of the line) at which the amplitude of the signal has decayed/reduced to or 33% of the original signal amplitude at the surface.

The skin effect has significant implications in the design of transmission lines and high-frequency circuits. At high frequencies, the skin effect can cause a significant increase in the effective resistance of a transmission line, which in turn leads to losses in the line. The skin depth, as defined above, is a measure of the extent to which the skin effect affects the transmission line. The skin depth is inversely proportional to the square root of the frequency, which means that as the frequency increases, the skin depth decreases, and the skin effect becomes more pronounced.

To mitigate the effects of the skin effect, transmission lines are often designed with a hollow core, which reduces the amount of material in the center of the line and increases the amount of material at the surface. This reduces the resistance to current flow at the center of the line and improves the overall performance of the line. Additionally, materials with high conductivity are used to reduce the overall resistance of the line and minimize the effects of the skin effect.

Read more ...

Types of Electronic Components: Active or Passive

An electronic/electrical component is any basic discrete device or physical entity in a system used to affect electrons or their associated fields. These can be of two types:

Active elements: These are devices or components that produce energy in the form of voltage or current. Examples include generators, batteries, and operational amplifiers.

Passive elements: These are devices or components that store or maintain energy in the form of voltage or current, but cannot generate it. Examples include capacitors, inductors, and resistors.

Another type of electrical component is electro-mechanical components. These components can carry out electrical operations by using moving parts or electrical connections. Examples include piezoelectric devices, crystals, and resonators.

To determine the type of element used:

• Active devices inject power into the circuit, while passive devices are incapable of supplying any energy.
• Active devices are capable of providing power gain, while passive devices are incapable of providing power gain.
• Active devices can control the current (energy) flow within the circuit, while passive devices cannot control it.
• An external power source is required to start the basic operation of an active device, while no extra power is required for a passive device.

Sometimes, some elements can be assumed as both active and passive. The classification depends on the context in which the component is used.

However, things can get complicated, especially when it comes to diodes. There are many conflicting or different arguments regarding whether a diode is an active or passive device:

In most cases (rectifier, Zener diode, etc.), a diode is undoubtedly a passive device. Only in some special cases, such as a tunnel diode, when its negative resistance region is used, can it be considered an active device. This is because:

• It is an active device since its impedance is positive or its v-i characteristics lie in the first and second quadrants.
• It is an active device since it requires an external power source to operate it in forward or reverse bias.
• It is an active device since it can be used as a waveform generator (half-wave rectifier).

If the i-v characteristics of the diode are in region I and III, then it is a passive device (always dissipating power). I think most diodes fall into this category. Therefore, the pn-junction device may be considered a passive device.

Read more ...

Security Risks in Satellite Communication: Is Intercepting Information Signals Possible?

It may be possible but difficult for individual . Many stipulations (conditions) are done so that no one will be able to do so.

1) Taking over the down link: One can take over the information sent by a satellite and use its data, but the satellite sends the signal back to earth only when its allocated ground station is visible. If someone sets the ground-station very near to it, then also the person will require to know many satellite information like, exact frequency, type of modulation, method of encryption etc. which is known only to the actual ground station people and not disclosed publicly.

2) Taking over the up-link: This is major issue and is point of concern for all space agency. If some unwanted people gets to upload unwanted data, they can change complete working of satellite and they can configure the satellite in the way they want or can spoil the satellite. To prevent this every satellite is given a unique id, the up-link data is encrypted and certain protocols are followed. Again to up-link some data the person should know the frequency and modulation scheme.

With these provisions mostly all the satellites are saved from hostile attackers.

Read more ...

Why are microwaves preferred for satellite communications?

Frequency of microwave bands extends from about one gigahertz to three hundred gigahertz. This large frequency bandwidth can carry huge information through different band.

Velocity = wavelength x frequency

From the relation we get they have short wavelength.

Due to enough short wavelength, they less capable of bypassing the obstacles of dense media like walls, hills etc . But it is a matter of think that microwave propagate through less dense media like atmosphere, free space in satellite communication.

Large frequency signal can convey large power and less attenuated. This leads to an essential property of microwaves is that they travel in straight lines through the atmosphere (like a torch light), are not affected by the ionized layers. So they can travel long distance.

Also these waves are very less affected by temperature inversions and scattering. But these weather effects limit the distance between the transmitter and the receiver to a few miles. This problem is overcome by usage of repeater stations placed along the propagation path. As they do not rapidly disperse in the atmosphere (less attenuation) so the power does not need to be very high to reach a distant point.

Because of penetration and traveling property, main mode of propagation in the microwave range is line of sight. Line of sight means that the transmitter and receiver need to see each other. That is the prime destination of satellite communication.

Generation of microwave is not complicated. Simple devices like magnetron can be used. Using metal reflector antennas, they can be easily directed from earth to satellite and vice-versa.

Various modulation techniques are available for microwave. So possibility of interference among data is very low. Due to large frequency bandwidth, a huge number of variable services are available without blocking.
